With the development of Tourniquet Touch, VBM has set up a new milestone in the manufacturing of modern Tourniquet combining quality, safety and simplicity.
Optimal precision and high performance of components provide the best possible environment for safe surgical procedures in OR and ambulatory surgery. The large 8” touch screen interface displays clear information regarding pressure and infl ation time. User friendly innovations such as Fast Choice Buttons and specifi c alarm program simplify the use of the device and reinforce patient safety. Longer power failures can be easily overcome by the powerful Lithium-Ion battery to guarantee safe continuation of the procedure.
The very robust housing makes cleaning and disinfection very easy due to the non-sensitive surface of the device.
- TOUCH SCREEN
100% premium glass
Easy cleaning and disinfection
Usable with surgical gloves
- DISPLAY
8" (800 x 480 pixel)
Wide viewing angle (178°)
Low reflection, mat, anti-glare
- BATTERY
Lithium ion (14.4 V – 93.6 Wh)
Approx. 8 h backup runtime
- SUPPLY VOLTAGE
100 – 240 VAC
- HOUSING
With integrated handle
Very robust material
UV-resistant
Surface allows easy cleaning and disinfection
- USB-PORT
Software Updates
Saving log file for device analysis
- WEIGHT AND DIMENSIONS
4.5 kg
Height 186 mm | Width 263 mm Depth 226 mm
The Tourniquet Touch is compatible with all VBM cuffs.

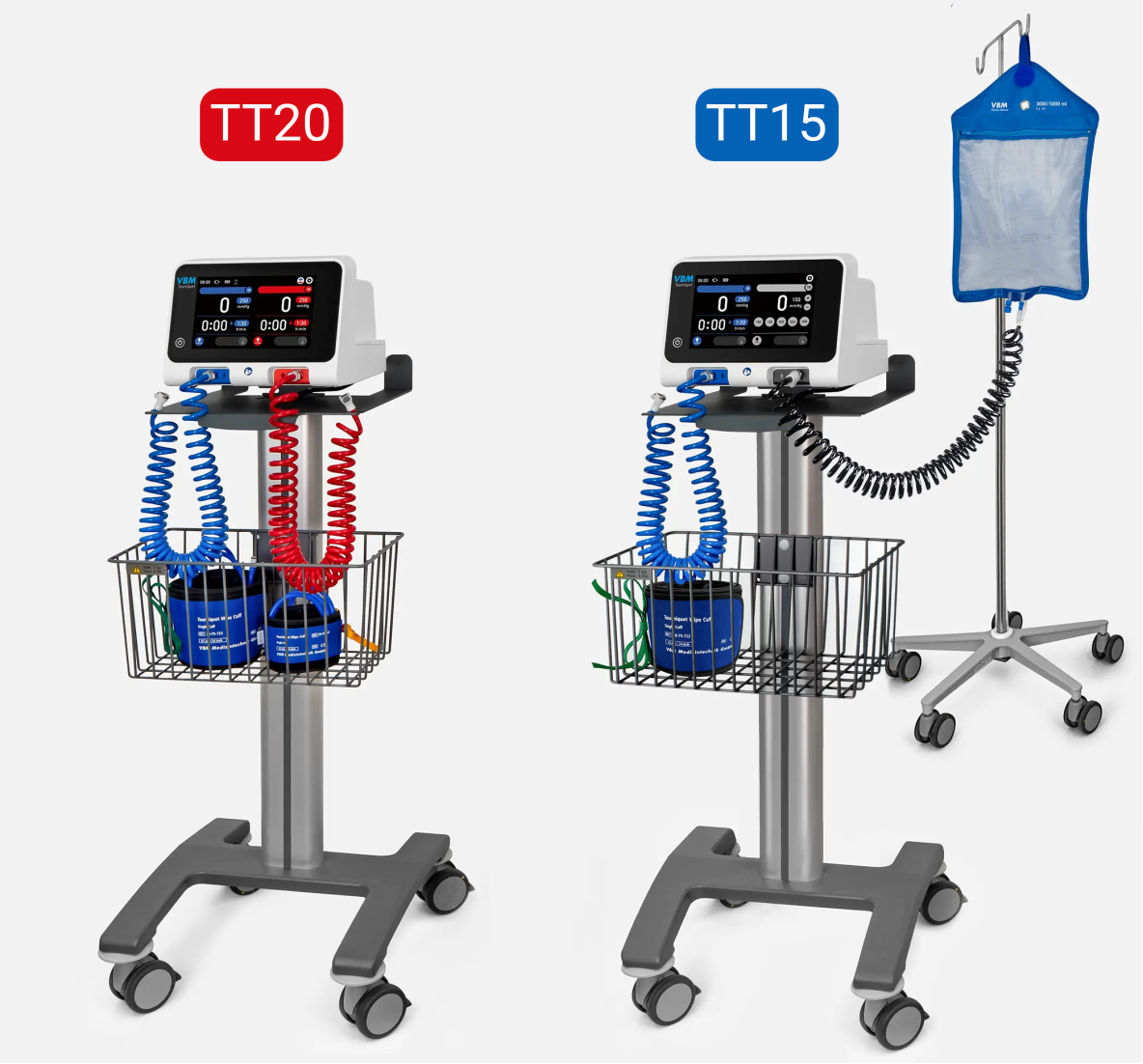

TOURNIQUET TOUCH TT20
With two channels for bloodless field operations, bilateral surgery or IVRA.
TOURNIQUET TOUCH TT15
For combination of bloodless field operations (1 channel) and irrigation purposes (1 channel).
